Computer
A box for every need and budget
Tooloop Boxes
Industrial grade hardware, built to last.
Buy from a partner
For some models, I have found a partner to build and sell boxes to our spec.
Pre-assembled with pre-installed OS and professional support.
Shop parts and build yourself
Each box model has a community maintained list of parts, that meet the requirements and are supported by the OS.
Shopping your own parts you have the freedom to customize builds and re-use parts you already have.
Models
For each requirement and budget





Requirements
All boxes should meet these requirements or at least have a very good reason not to.
If you’re a vendor and want to sell Tooloop Boxes? Cool, please do have a look at the following list and get in contact.
Chassis
- Rack-mountable A computer belongs in rack. Only very rarerly there's a reason to put it elsewhere. It’s safe and it’s easy to reach and maintain.
- Size mostly doesn’t matter! Resist the urge of going too small! Do you really, really need to? Small = hot.
- Cooling does matter! Passive cooling is mostly not for us media people. Not if your app uses at least some computational power.
- Dust filters are the logic consequence of active cooling. If you can't provide dust filters in the chassis or rack, you will be back in half a year.
- Silent would be nice. In a museum, a showroom or in a theatre we want to be as silent as possible. Not on the expense of bad cooling, though.
Longevity
Industrial and server grade components are built to last. They withstand high temperatures, run 24/7 and you can still purchase them in a year or two.
SSD-Drive
They’re loading your videos and images much faster than spinning discs. Depending on the chassis, there’s options to mount tiny SSDs.
BIOS
It should have a quiet boot option and be able to wake-on-lan.
Parts lists – Box S
Odroid
Part | Description | Req. | Price 1 |
---|---|---|---|
Board | ODROID-XU4 | 80 € | |
Case | ODROID-XU4 Case | 8 € | |
Power supply | 5 V/4 A Power Supply | 10 € | |
HD | 16 GB eMMC Module XU4 Linux | 45 € | 143 € |
(1) Prices are estimates and may vary depending on where you source the parts.
Parts lists – Box M
Part | Description | Req. | Price 1 |
---|---|---|---|
Mainboard |
Fujitsu D3434-S Mini-ITX, 24/7, 0–60 °C |
205 € | |
Cooler | Dynatron K2 for Mini ITX |
25 € | |
Case | e.g.Advantech AIMB-B2000-15ZE 150 W PSU |
130 € | |
CPU (Option 1) | Intel Celeron G3930TE 2 × 2.70GHz Intel HD-Grafik 610 |
45 € | |
CPU (Option 2) | Intel Core i3-7100T 2 × 3.40GHz Intel HD Graphics 630 |
(110 €) | |
HD | 64 GB M.2 | 45 € | |
RAM | 4 GB | 45 € | 505 € |
(1) Prices are estimates and may vary depending on where you source the parts.
Parts lists – Rack M
Part | Description | Req. | Price 1 |
---|---|---|---|
Mainboard |
Fujitsu D3441-S μATX, 24/7, 0–60 °C |
205 € | |
CPU |
Intel Core i3-7100T 2 × 3.40GHz Intel HD Graphics 630 |
110 € | |
Cooler | Dynatron K199 for 1U |
35 € | |
Chassis | e.g. IPC-C130B |
85 € | |
Power supply | e.g. Seasonic SS-250SU 250 W Flex ATX | 45 € | |
HD | mSATA 120 GB | 60 € | |
RAM | 4 GB | 45 € | 630 € |
(1) Prices are estimates and may vary depending on where you source the parts.
Buy Rack M

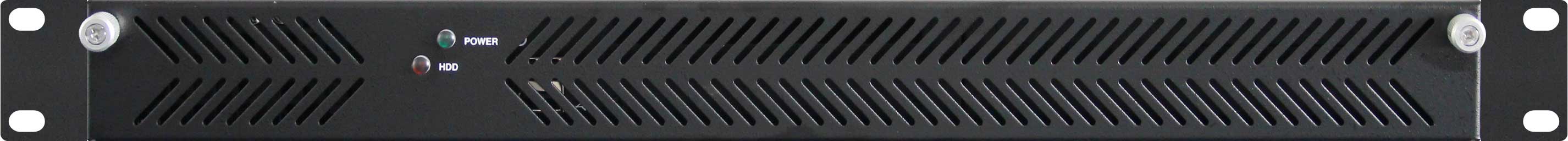

RACK M, 19" 1U, CORE i3, INTEL HD GRAPHICS
925 €
Based on Intels 6th generation Skylake architecture, the system features Intel HD 530 graphics.
Consuming as little as 35 W, the CPU generates very little heat. The chassis is not equipped with dust filters to further optimize air flow which needs to be considered.
Features- Rugged 19", 1U industrial workstation
- Steel chassis with 400 W PSU
- Intel Core i3-6100TE CPU, 4 GB RAM
- 128 GB SSD
- Industrial mainboard with Intel H110 Express Chipset (Skylake)
- Intel HD 530 graphics
- 2 × Intel GbE LAN
- External Connectors: 4 × DP, 2 × LAN, 2 × USB3.0, 4 × USB2.0, Audio Mic. In / Line in / Line out, 2 × PS/2
Parts lists – Rack L
Part | Description | Req. | Price 1 |
---|---|---|---|
Mainboard |
Fujitsu D3441-S μATX, 24/7, 0–60 °C |
205 € | |
CPU | Intel Core i5 7600 4 × 3.50GHz | 200 € | |
Cooler | Dynatron K666 for 2U |
45 € | |
Chassis |
Chenbro RM24100 |
130 € | |
Power supply | 500 W | 70 € | |
Silent fans |
1 × Noctua NF-A8 PWM, 80 mm, 2 × Noctua NF-A4x20 5V PWM, 40 mm |
45 € | |
HD | SSD 256 GB | 130 € | |
RAM | 8 GB | 85 € | |
GPU | Nvidia Quadro P2000 | 450 € | |
Riser card | for GPU | 30 € | 1.390 € |
(1) Prices are estimates and may vary depending on where you source the parts.
Buy Rack L

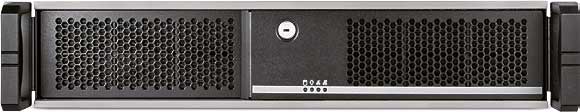

RACK L, 19" 2U, CORE i5, NVIDIA QUADRO P2000
1.747 €
No compromise was made building this system. Serious CPU power and professional NVidia graphics will bring enough bang for any kind of project.
The chassis has good airflow and is equipped with dust filters.
Features- Rugged 19", 2U industrial workstation
- Steel chassis with 500 W PSU
- Intel Core i5-6500 CPU
- 8 GB RAM
- 256 GB SSD
- Industrial mainboard with Intel H110 Express Chipset (Skylake) and 1 × PCIe(x16)
- Nvidia Quadro P2000 professional workstation graphics card
- 2 × Intel GbE LAN
- External Connectors: 4 × DP, 2 × LAN, 2 × USB3.0, 4 × USB2.0, Audio Mic. In / Line in / Line out, 2 × PS/2
Parts lists – Rack XL
Part | Description | Req. | Price 1 |
---|---|---|---|
Mainboard |
Fujitsu D3441-S μATX, 24/7, 0–60 °C |
205 € | |
CPU | Intel Core i7 7700 4 × 3.60GHz | 300 € | |
Cooler | Dynatron K17 for 3U and up |
45 € | |
Chassis | 4 HE, Chenbro RM4230 | 140 € | |
Power supply | 500 W | 70 € | |
Chassis fans |
Noctua 2 × 80 mm |
32 € | |
HD | SSD 256 GB | 130 € | |
RAM | 16 GB | 140 € | |
GPU | Nvidia Quadro P4000 | 850 € | 1.920 € |
(1) Prices are estimates and may vary depending on where you source the parts.
Buy Rack XL

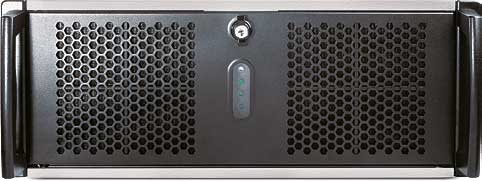

RACK XL, 19" 4U, CORE i7, NVIDIA QUADRO P4000
2.246 €
No compromise was made building this system. Serious CPU and graphics power for any kind of project.
The chassis has very good airflow and offers enough space for every component you need. It’s also equipped with dust filters.
Features- Rugged 19", 4U industrial workstation
- Steel chassis with 500 W PSU
- Intel Core i7-6700 CPU
- 16 GB RAM
- 256 GB SSD
- Industrial mainboard with Intel H110 Express Chipset (Skylake) and 1 × PCIe(x16), 4 × PCIe(x1), 2 × PCI
- Nvidia Quadro P4000 professional workstation graphics card
- 2 × Intel GbE LAN
- External Connectors: 4 × DP, 2 × LAN, 2 × USB3.0, 4 × USB2.0, Audio Mic. In / Line in / Line out, 2 × PS/2
